Common Icons and Troubleshooting Tips

This section includes common icons and issues TEs and students may encounter during scheduling or the administration of a remote test session, as well as tips on how to troubleshoot common issues. The Remote Testing Icons and Troubleshooting At-a-Glance guide is available as well.

Common Error Messages

Table 1 includes common issues TEs may encounter when creating a test session and explains how to resolve those issues.

Table 1. Common Error Messages
Common Issue Description

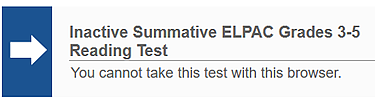

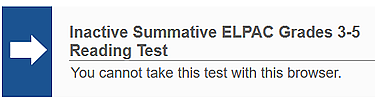

Error message with white arrow in blue box reading, 'Inactive Summative ELPAC Grades 3-5 Reading Test: You cannot take this test with this browser.'

This error message displays on the student’s screen: “You cannot take this test with this browser.”

Ask the student to launch the secure browser, as the assessment must be taken using the secure browser.

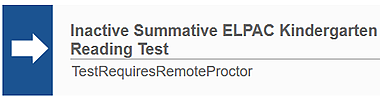

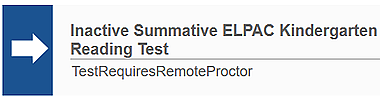

Error message with white arrow in blue box reading, 'Inactive Summative ELPAC Kindergarten Reading Test: test requires remote proctor.'

This error message displays on the student’s screen: “Test requires remote proctor.”

Grant the student permission for remote testing or test the student in person, as the student does not have permission in TOMS to take assessments remotely.
Message box reading, 'Important! Some of the tests in your session do not permit remote administration Please remove those and try again.' with the OK button.

This message displays on the Test Administrator Interface: “Some of the tests in your session do not permit remote administration. Please remove those and try again.”

Remove any assessment that is not permitted from the session to proceed or start an in-person session to deliver these assessments.

Common Icons While Logging On to a Test Session

Table 2 includes icons TEs and students can expect to encounter during an administration. These icons are expected during a successful remote test administration and do not indicate an issue.

Table 2. Common Icons
TE Icon Student Testing Icon Description
Gray hour glass on a white background. N/A The student is completing the pretest checks. Once the student selects the [Begin Test Now] button, this icon is updated with an image of the student.
Cloud with sad face on a white background set above an hour glass. Red circle surrounds a camera showing a test examiner; a sad-face cloud is overlaid on top.

The student’s webcam is trying to connect (in focus).

The white background with the sad cloud and green hourglass may display momentarily while the Test Administrator Interface and student communication widget are waiting to connect at the beginning of the assessment.
Cloud with sad face on a black background set above an hour glass. Blue circle surrounds a camera showing a test examine; a sad face cloud is overlaid on top.

The student’s webcam is trying to connect (out of focus).

The black background with the sad cloud and green hourglass may display momentarily while the Test Administrator Interface and student communication widget are waiting to connect, or when a student pauses or submits an assessment.

Common Issues During a Test Session

Table 3 includes icons TEs or students may encounter during an administration. To prevent issues from occurring, ensure TEs and students have a secure and reliable network. TEs and students can use the Network Diagnostics Tool to determine whether they have adequate network bandwidth available.

These icons do indicate an issue that needs to be resolved before testing can continue. In all scenarios, first ask the student to exit out of the secure browser, restart their device, reopen the secure browser, and log back on to the assessment. We also recommend keeping a videoconferencing meeting open during the test session as a way for students to ask their TEs for help.

Table 3. Common Test Session Issues
Icon Description Troubleshooting Tip
Red circle around a cloud with a sad face.

The student video is not working, likely because of a malfunctioning webcam or a slowdown in the student’s network.

 Inform the student you are pausing the assessment using the chat feature and ask the student to restart the device and log back on to the secure browser.
Black screen containing a gray cloud with a sad face, and a blue-filled circle with a white phone and an 'x.'

The student’s webcam within the student communication widget is not working when the TE is trying to communicate directly with the student.

 Inform the student you are pausing the assessment using the chat feature and ask the student to restart the device and log back on to the secure browser.
Dark red circle around a black triangle with a white exclamation mark inside.

The “warning” icon would appear in the Test Administrator Interface because there is no connection between the Test Administrator Interface and student communication widget.

 Stop the test session. Follow the LEA’s local procedure for alerting the LEA coordinator and IT department to troubleshoot further.

If issues continue to persist, please reschedule testing for another time. If possible, bring the student in to test in person.

Network Troubleshooting

There are a lot of network variables that could impact the testing experience. Consider the following:

  • LEA networks usually have enough capacity to support student testing.
  • Home networks for TEs and students may have less capacity.
  • If one student is receiving the “sad cloud” icon, there is likely a student network issue. If all the students are receiving the “sad cloud” icon, there is likely a TE issue.

Try one of the following actions to address network issues during testing:

  • If only one student is having the issue, encourage the student to pause the assessment, close the secure browser, reopen the secure browser, and log back on to the assessment.
  • If all students are having the issue, focus on the TE network and device. Close the web browser and any tabs that are open and then have students log back on.

Information to Collect

If the issue persists, LEA ELPAC coordinators should notify the assigned LEA Success Agent. The LEA Success Agent will request the following information:

  • The type of device the TE is using
  • The type of device the student is using
  • The assessment being administered
  • The test session ID
  • The student’s SSID
  • Confirmation of whether the student was visible at some point
  • Details on which other parts of the communication widget were not functioning

In addition to collecting specific information, answers to the following questions are also helpful for the LEA Success Agent in replicating and isolating the issue so it can be resolved:

  • Was the issue impacting every student in the test session or only one student?
  • Was the issue happening with the same students and staff?
  • Was the issue recurring on the same network?
  • Was the issue recurring on a specific device type?
  • Were students visible at some point during the session or were they never visible?
  • Were some parts of the communication widget working and not others? For example, the sound was working but not the video.
  • Were there any patterns that would help to replicate the issue and resolve it?

When to Contact the LEA Success Agent

  • If the issue continues to occur after reviewing the common issues and trying the network troubleshooting steps, the LEA coordinator should contact the LEA Success Agent with the requested information collected and answers to the suggested questions.
  • The LEA Success Agent will escalate the issue and ETS can begin an investigation to determine the cause of the issue. If it is discovered to be a widespread issue, ETS will post a known issue or a banner on the CAASPP & ELPAC Website to let other LEAs know what to expect.
  • LEA ELPAC and site ELPAC coordinators should also contact the LEA Success Agent if the issue is impacting an entire class of students.
  • TEs should contact the LEA Success Agent while in a live test session. In all other scenarios, they should contact the testing coordinator.
